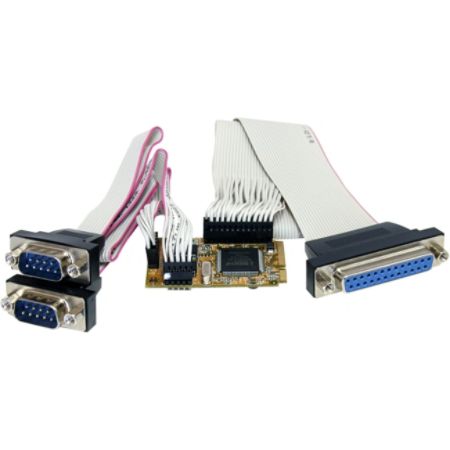

StarTech.com 2s1p Serial Parallel Combo Mini PCI Express Card for Embedded Systems Item # 701938
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
701938
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Add two RS232 Serial Ports, and one Parallel Port to an Embedded System, through a mini PCI-Express Slot.The MPEX2S1P552 2S1P Mini PCI Express Serial/Parallel Combo Card turns a mini-PCIe slot into two RS232 (DB9) serial ports, and one IEEE 1284 parallel port - a cost-saving solution for adding serial and parallel support to embedded systems that lack built-in serial/parallel functionality.The 16650 UART adapter card features a native PCI Express single chip design, which enables you to take advantage of full PCI Express capability, by providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional "bridge chip" serial cards .
Product Details
| Item # | 701938 |
| Manufacturer # | LE6619 |
| maximum data transfer rate | 7.20 Mbit/s Serial Port; 12 Mbit/s Parallel Port |
| height | 0.4 in |
| Parallel Port Modes | ECP; EPP; SPP |
| quantity | 1 |
| Number of Parallel Ports (External) | 1 |
| width | 1.2 in |
| package contents | 2s1p Serial Parallel Combo Mini PCI Express Card for Embedded Systems; 1 x Mini PCI Express Card; 1 x Driver CD; 1 x Instruction Manual; 2 x DB9 to IDC Ribbon Cable; 1 x DB25 to IDC Ribbon Cable |
| Auxiliary Ports | 1 x parallel port |
| depth | 2 in |
| Product Name | 2s1p Serial Parallel Combo Mini PCI Express Card for Embedded Systems |
| manufacturer | StarTech.com |
| Host Interface | PCI Express |
| weight | 0.40 oz |
| brand name | StarTech |
| length | 2 in. |
| UART Type | 16650 |
| Number of Serial Ports (External) | 2 |
| Platform Supported | PC |
| form factor | Plug-in Card |
| warranty length | limited lifetime |
